What Is Aluminum Die Casting

Aluminum die casting is a pivotal process in modern industrial manufacturing, revolutionizing the production of intricate metal parts. By swiftly injecting molten metal into specialized molds under high pressure, this method creates precise components with exceptional efficiency and cost-effectiveness. Let’s delve into the fundamentals of aluminum die casting and explore its significance in today’s industrial landscape.

Die Casting Process Overview

The die casting process involves the rapid introduction of molten metal into a die casting mold cavity, followed by cooling and solidification to form the desired castings. Two primary methods, cold chamber die casting and hot chamber die casting, are commonly utilized. This process is instrumental in the fabrication of diverse metal parts, offering heightened efficiency by minimizing or eliminating the need for extensive metal cutting operations.

Cold Chamber Die Casting

In cold chamber die casting, the molten metal is ladled into a shot chamber from an external furnace and then manually transferred into the cold chamber machine. This method is primarily used for alloys with high melting points that would damage a hot chamber machine.

Process

  • Metal Injection: The molten metal is ladled into a shot chamber.
  • Injection: A hydraulic piston forces the metal into the die cavity.
  • Cooling and Solidification: The metal solidifies in the die cavity.
  • Ejection: The casting is ejected, and the cycle repeats.

Advantage & Disadvantage

In cold chamber die casting, the method is particularly well-suited for alloys with high melting points, making it ideal for parts that demand exceptional strength and hardness. This process accommodates larger part sizes and contributes to extended die life by minimizing exposure to high temperatures. However, it does involve slower cycle times in comparison to hot chamber die casting, entails more manual labor for metal transfer, and can lead to increased metal wastage due to the manual handling processes involved.

Hot Chamber Die Casting

In hot chamber die casting, the molten metal is contained in a furnace attached to the machine, and a hydraulic piston injects the metal into the die. This method is commonly used for zinc and magnesium alloys with lower melting points.

Process

  • Metal Melting: The metal is melted in the furnace.
  • Injection: The hydraulic piston injects the molten metal into the die cavity.
  • Cooling and Solidification: The metal solidifies in the die.
  • Ejection: The casting is ejected, and the process repeats.

Advantage & Disadvantage

In hot chamber die casting, the process offers faster cycle times and requires less manual intervention as the metal is automatically fed from the furnace. This method is particularly efficient for high-volume production runs and is well-suited for working with zinc and magnesium alloys. However, hot chamber die casting is constrained to low melting point alloys, is not suitable for larger or high-strength parts, and may result in a shorter die life due to prolonged exposure to high temperatures.

Aluminum Die Casting Production Process

In the production process of aluminum die casting, precision and attention to detail are paramount.

Die Casting Machine Calibration

The process begins with calibrating the die casting machine to ensure precise and consistent operation throughout production.

Mold Assembly

The molds, crucial for shaping the molten aluminum, are meticulously assembled to exact specifications, guaranteeing the desired form of the final components.

Alloy Heating

The aluminum alloy is heated to its precise melting point, ensuring optimal flow and fill characteristics during the casting process.

Mold Coating

A specialized coating is applied to the molds to enhance release properties, minimize defects, and improve surface finish of the cast components.

Mold Locking

Once the mold is prepared, it is securely locked in place within the die casting machine to prevent any movement during the casting process.

Pouring and Injection

The molten aluminum is poured into the mold cavity and injected at high pressure to fill the intricate details of the mold and form the desired shape of the component.

Pressure Testing

After the aluminum has solidified, the components undergo rigorous pressure testing to ensure structural integrity and adherence to quality standards.

Demolding

The solidified aluminum components are carefully removed from the molds, paying close attention to prevent any damage or defects.

Finishing

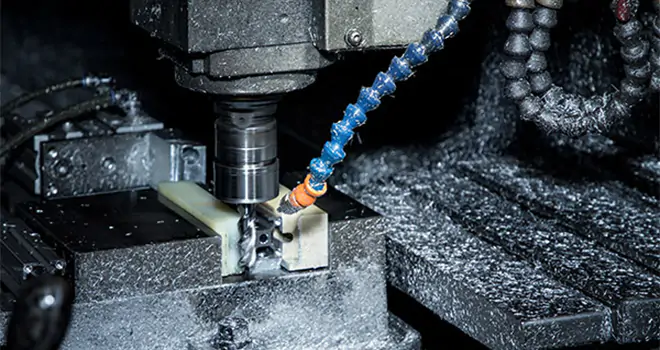

Post-casting processes such as trimming, deburring, and surface treatment are carried out to refine the appearance and functionality of the components.

Precision Casting

Precision casting techniques are employed to achieve tight tolerances, smooth surfaces, and consistent dimensions in the final aluminum components.

Products Suited for Aluminum Die Casting

Die casting excels in crafting intricate metal parts with clear contours and deep cavities due to the high fluidity of molten metal under pressure.

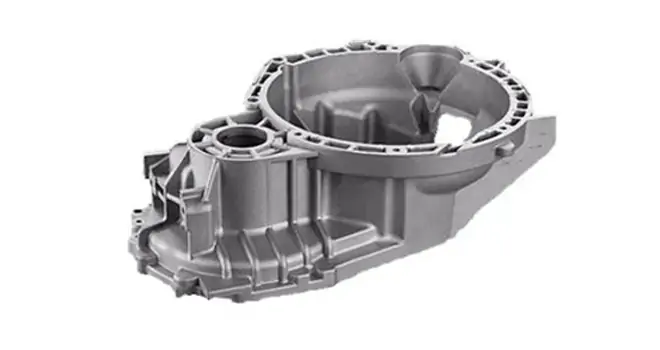

Aluminum Gearbox Housing

When considering the manufacturing process for gearbox housing, the utilization of aluminum die casting stands out as a strategic choice due to a myriad of advantages it offers.

  • Complex Geometry: Aluminum die casting allows for the production of gearbox housings with intricate and complex geometries. This process enables the creation of parts with features such as thin walls, internal cavities, and integrated mounting points in a single piece, which may be challenging to achieve with other manufacturing methods.

  • High Precision: Die casting offers high dimensional accuracy and repeatability, ensuring that gearbox housings meet tight tolerances and specifications. This precision is crucial for components that require seamless assembly and optimal functionality within the gearbox system.

  • Consistency: The die casting process provides consistent and uniform parts with each production cycle. This uniformity is essential for gearbox housings to maintain consistent performance characteristics and compatibility within the system.

  • Reduced Post-Processing: Aluminum die casting produces gearbox housings with excellent surface finish and detail resolution, reducing the need for extensive post-processing operations such as machining or finishing. This streamlines production processes and saves time and costs.
