Aluminum Bus Bar For Sale
We offer a range of popular aluminum busbar products, including grades such as 6101, 1050, 1060, 1070, 1100, 1350, 6061, 6063, and 6082. These busbars are extensively utilized in distribution system electrical conductors. Our C grade aluminum electrical busbar adheres to quality standards like ASTM B317, ASTM B236, IEC 60105, ISO 209-1, 2, DIN EN 755-2, and EN 573-3, making it a preferred choice for distribution system electrical conductors.
Aluminum Busbar Specifications
- Surface Quality: Smooth surface without burrs or spots; clean, dust-free, oil-free; uniform, dense oxide layer with good corrosion resistance.
- Surface Treatment: Anodizing, electroplating, spraying. Common platings: silver, tin, nickel.
- Insulation Treatment: Insulation coating such as powder coating, epoxy resin, or insulation paint. Insulating sleeve options: PVC, heat shrink tubing, silicone rubber.
- Product Packaging: Bundles and boxes for length delivery; discs, circles, or bundles for quality delivery.
- Testing: Conductivity, temperature rise, bending tests.
- Standard: IEC 60105, ISO 209-1, 2, DIN EN 755-2, DIN EN 755-5:2008-06.
Aluminum Grade Of Electrical Busbar
Aluminum Grade | Temper |
1060 EC aluminum busbar | T3, T4, T5, T6, T8 |
1350 EC aluminum busbar | H14, H16, H19 |
6060 EC aluminum busbar | T4, T5, T6 |
6082 EC aluminum busbar | T3, T4, T5, T6 |
6061 EC aluminum busbar | T4 |
6063 EC aluminum busbar | T4, T5, T6, T52, T66 |
6101 EC aluminum busbar | T6, T61, T63, T64, T65 |
Aluminum Electrical Busbar Dimensions And Tolerance
Length | Maximum 6m | |
Width / mm | 10-200 | |
Width tolerance / mm | b≤35.50 | ±0.40 |
35.50<b≤100.00 | ±0.80 | |
b>100.00 | ±1.20 | |
Thickness / mm | 0.15-40 | |
Thickness tolerance / mm | a≤6.30 | ±0.15 |
6.30<a≤12.50 | ±0.20 | |
a>12.50 | ±0.30 | |
Minimum Bend Radius / mm | 1x thickness (up to 12mm) 2x thickness (>12mm) | |
Aluminum Busbar Types
Aluminum busbars come in various forms, each tailored to specific electrical requirements. Among these types are flat bars and tubular busbars, each serving distinct purposes in power transmission and distribution systems.
Aluminum Flat Busbar

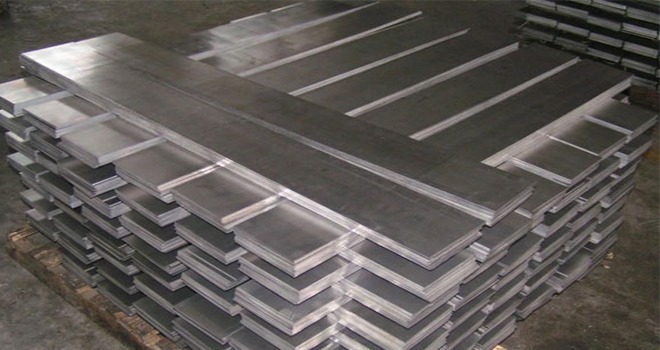

A high-strength, conductive aluminum bus bar with guaranteed 55% IACS conductivity, exceptional corrosion resistance, and weldability. Designed for processing high-strength flat bar conductors, offering a versatile solution for various electrical applications.
Aluminum Flat Bar Size Chart
2mm | 2*30 | 2*40 | 2*67 | 2*70 | 2.5* 25 | |||||
3mm | 3*10 | 3*15 | 3*20 | 3*25 | 3*30 | 3*40 | 3*50 | 3*60 | 3*67 | 3*75 |
3*110 | ||||||||||
4mm | 4*10 | 4*15 | 4*20 | 4*25 | 4*30 | 4*40 | 4*45 | 4*50 | 4*60 | 4.6*60 |
4.8*9.8 | ||||||||||
5mm | 5*15 | 5*20 | 5*25 | 5*30 | 5*35 | 5*40 | 5*50 | 5*60 | 5*80 | 5*100 |
6mm | 6*20 | 6*25 | 6*30 | 6*40 | 6*50 | 6*54 | 6*55 | 6*60 | 6*65 | 6*70 |
6*75 | 6*80 | 6*100 | 6*120 | 6*150 | 6*160 | |||||
6.3mm | 6.3*50 | 6.3*63 | 6.3*63.5 | 6.3*80 | 6.35*50.8 | 6.35*76.2 | ||||
7mm | 7.6*80 | 7*150 | 7*4*20*4 | |||||||
8mm | 8*11 | 8*30 | 8*40 | 8*50 | 8*51 | 8*60 | 8*63 | 8*63.5 | 8*65 | 8*70 |
8*80 | 8*90 | 8*100 | 8*120 | 8*125 | 8.8*28.6 | |||||
9mm | 9*170 | 9*125 | 9. 2*64 | |||||||
10mm | 10*20 | 10*25 | 10*30 | 10*40 | 10*45 | 10*50 | 10*60 | 10*63 | 10*65 | 10*70 |
10*80 | 10*90 | 10*100 | 10*110 | 10*114 | 10*120 | 10*125 | 10*140 | 10*150 | 10*160 | |
12mm | 12*30 | 12*40 | 12*45 | 12*50 | 12*60 | 12*70 | 12*76 | 12*80 | 12*100 | 12*120 |
12*125 | 12*130 | 12*140 | 12*150 | 12*160 | ||||||
12.5mm | 12.5*90 | 12.5*100 | 12.5*125 | 12.5*127 | 12.7*101.6 | 12.7*160 | ||||
13mm | 13*125 | 13*130 | 13*160 | |||||||
14mm | 14*100 | 14*120 | 14.5*80 | |||||||
15mm | 15*30 | 15*35 | 15*50 | 15*60 | 15*80 | 15*100 | 15*120 | 15*125 | 15*150 | |
16mm | 16*30 | 16*90 | 16*100 | 16*110 | 16*125 | 16*130 | 16*140 | 16*150 | 16*160 | |
20mm | 20*76 | 20*100 | 20*120 | 20*130 | ||||||
Square bar | 19*19 | 30*45 | 15*15 | |||||||
Round bar | Φ6 | Φ8 | Φ10 | Φ11 | Φ12 | Φ14 | Φ15 | Φ15.6 | Φ16 | Φ18 |
Φ20 | Φ21 | Φ22 | Φ23 | Φ25 | Φ27 | Φ28 | Φ30 | Φ32 | Φ35 | |
Φ38 | Φ40 | Φ45 | Φ50 | Φ55 | Φ60 |
Aluminum Tubular Busbar
Primarily used for conductor connections in power grid transmission, substation transformers, jumper lines in transmission, power equipment connections, and high current DC ice melting devices. It replaces traditional aluminum bus bar types, serving as a key material in power transmission and transformation systems, ensuring safe and reliable operations.
Aluminum Tubular Busbar Size Chart
2mm | R2*20 | R2.5* 50 | |||||||
3mm | R3*30 | R3*40 | R3*50 | R3*60 | R3*80 | R3*100 | R3*120 | R3*160 | |
4mm | R4*25 | R4*30 | R4*35 | R4*40 | R4*50 | R4*60 | R4.1*44.1 | R4.7*151 | |
5mm | R5*30 | R5*35 | R5*40 | R5*45 | R5*50 | R5*60 | R5*70 | R5*75 | R5*80 |
R5*90 | R5*100 | R5*120 | |||||||
6mm | R6*40 | R6*50 | R6*60 | R6*70 | R6*80 | R6*100 | R6*120 | R6*140 | R6*160 |
R6.3*63 | R6.35*76.5 | ||||||||
7mm | R7*70 | ||||||||
8mm | R8*40 | R8*50 | R8*60 | R8*80 | R8*100 | R8*120 | |||
10mm | R10*20 | R10*40 | R10*50 | R10*60 | R10*75 | R10*80 | R10*100 | R10*120 | R10*125 |
R10*150 | R10*160 | R10*170 | R10.4*25 | ||||||
12mm | R12*80 | R12*100 | R12*110 | R12*120 | R12*125 | R12*150 | R12*160 | ||
12.5mm | R12.5*80 | R12.5*125 | R12.7*90 | R12.7*127 | |||||
13mm | R13*120 | R13*125 | |||||||
14mm | R14*100 | R14*120 | R14*150 | ||||||
15mm | R15*100 | R15*120 | R15*130 | R15*150 | |||||
16mm | R16*150 | R16*160 | |||||||
19mm | R19.05*101.6 | R19.05*127 | |||||||
20mm | R20*80 | R20*120 | R20*130 |
Aluminum Busbar Applications
Power Transmission and Distribution System: Utilized in high-voltage transmission lines, substations, distribution transformers, and other power equipment to ensure efficient power flow.
Industrial Power Applications: Deployed in factories, mines, and manufacturing facilities to support reliable power distribution within industrial settings.
Buildings and Facilities: Positioned in distribution rooms and power boxes within buildings to facilitate electricity distribution.
New Energy Systems: Integral to solar and wind power generation systems, converting renewable energy into electrical power for transmission to the grid or energy storage units.
New Energy Electric Vehicles: With the rise of electric vehicles, aluminum busbars play a crucial role in electric vehicle drive systems and charging stations. Aluminum’s high conductivity and lightweight properties meet the demands of vehicle efficiency and lightweight design requirements.
